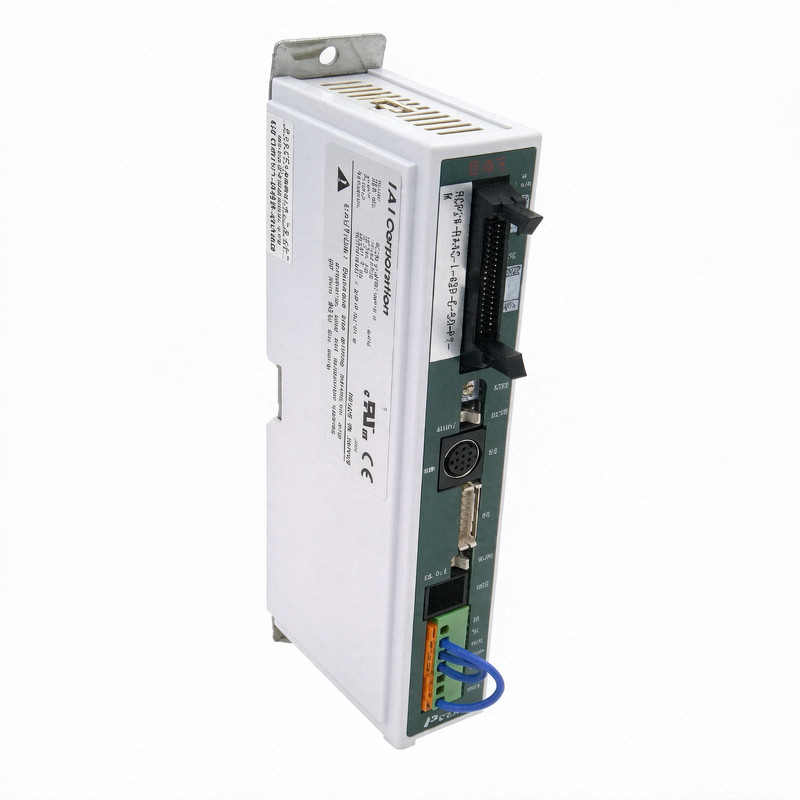

IAI PCON-C-42PI-NP-2-0 Single-Axis Position Controller
| Place of Origin | Japan |
| Brand Name | IAI |
| Model Number | PCON-C-42PI-NP-2-0 |
Product Overview
IAI PCON-C-42PI-NP-2-0 is a one-axis position controller matched to an IAI actuator with a 42P motor-flange class and incremental encoder. The C designation identifies the positioner version with an internal drive-power cutoff relay. NP indicates NPN sink I/O, and the final 2-0 code identifies a 2 m I/O cable specification and 24 VDC supply.
The controller stores position data and operating parameters in nonvolatile memory. It is intended for exact-model replacement and maintenance of existing PCON-C installations.
Main Features
- Single-axis stored-position control for a matching 42P actuator
- 64 positioning points as standard and up to 512 through the selected PIO pattern
- Separate position, speed, acceleration, deceleration, and positioning-band settings
- Position-specific zone outputs and supported push-motion operation
- 24 VDC NPN sink interface and RS485 communication conforming to Modbus
Technical Specifications
| Model | PCON-C-42PI-NP-2-0 |
| Controller Type | Positioner, internal drive-power cutoff relay |
| Controlled Axes | 1 |
| Actuator Code | 42P incremental |
| I/O | NP, NPN sink; 2 m flat cable specification |
| Power Supply | 24 VDC +10% / -10% |
| Protection / Cooling | IP20 / natural air cooling |
| Dimensions / Weight | 35 x 175.5 x 68.1 mm / 300 g or less |
Compatible System and Applications
This model is used in assembly machines, indexing stations, transfer mechanisms, packaging systems, inspection equipment, and other PLC-controlled machinery that was engineered for the 42PI controller configuration. The 42PI code is an actuator-matching specification and must not be treated as a general power rating.
Maintenance and Replacement Notes
Confirm the full controller suffix, actuator nameplate, motor and encoder cables, brake option, PIO pattern, NPN wiring, position data, and parameter file before installation. PCON-C production ended with an order cutoff of 23 June 2023. The later PCON-CB family uses different parameter and backup files, teaching-tool support, and controller-side cable connections. Cable conversion or replacement may be necessary.
Inquiry and Supply Notes
Send clear nameplate photographs and identify the machine function, installed cable numbers, required quantity, fault condition, and whether a parameter backup is available. Condition, accessories, and current availability should be confirmed through the quotation.
