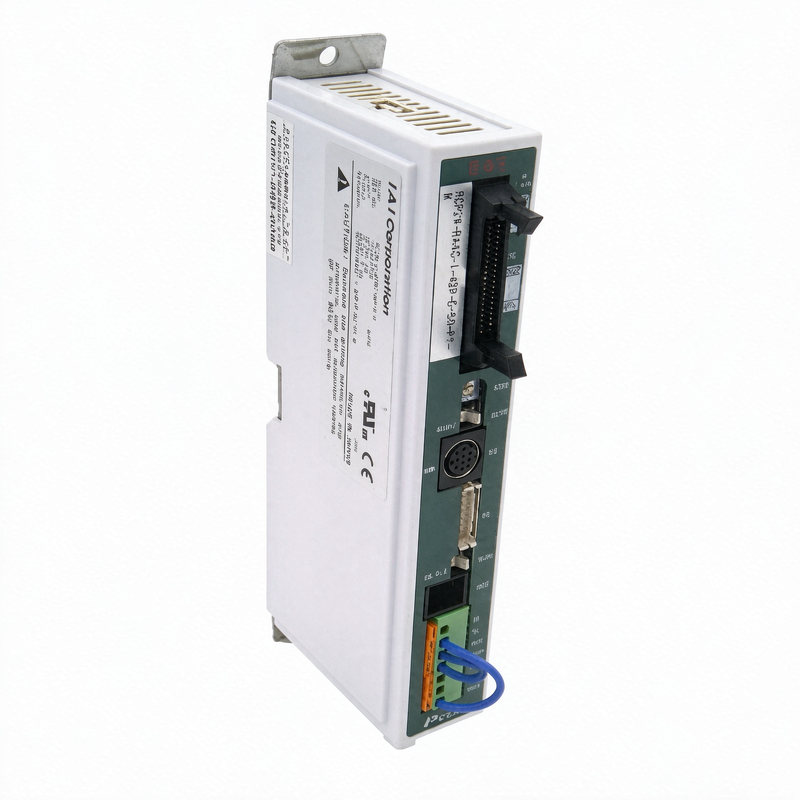

IAI PCON-CA-42PWAI-NP-2-0 Position Controller
| Place of Origin | Japan |
| Brand Name | IAI |
| Model Number | PCON-CA-42PWAI-NP-2-0 |
Product Overview
IAI PCON-CA-42PWAI-NP-2-0 is a single-axis position controller developed for compatible IAI RoboCylinder electric actuators. It manages actuator positioning, acceleration, deceleration, movement commands, position completion signals and alarm monitoring in automated machinery. The compact controller is suitable for replacement, machine maintenance and control-panel integration where the complete original model must be matched accurately.
Main Features
- Single-axis positioning control for compatible IAI electric actuators
- 24 VDC controller power supply
- 42P actuator motor configuration code
- WAI encoder and feedback configuration
- NP NPN sink-type parallel I/O specification
- Supports programmed positioning and actuator movement sequences
- Suitable for control cabinets, production equipment and machine rebuilding
Technical Specifications
| Brand | IAI |
| Model | PCON-CA-42PWAI-NP-2-0 |
| Controller Series | PCON-CA |
| Product Type | Single-Axis Position Controller |
| Controlled Axes | 1 Axis |
| Power Supply | 24 VDC |
| Actuator Motor Code | 42P |
| Encoder / Feedback Code | WAI |
| I/O Type | NP, NPN Sink Type |
| I/O Cable Specification | Code 2 |
| Power Supply Code | 0 |
Compatible System and Applications
The PCON-CA-42PWAI-NP-2-0 can be used in automated assembly stations, component transfer equipment, packaging machinery, inspection systems, loading mechanisms and other applications using a compatible IAI RoboCylinder actuator. The controller receives commands from a PLC or machine control system and controls the connected actuator according to stored position data and programmed motion parameters.
Maintenance and Replacement Notes
PCON controllers are configured for specific actuator motor and feedback combinations. Before replacing an existing controller, verify the complete controller model, actuator model, motor code, encoder configuration, NPN I/O logic, cable arrangement and parameter data. The connected actuator model printed on the controller label should correspond to the actuator installed on the machine. Parameter backup is recommended before removing the original unit.
Inquiry and Supply Notes
Please provide photographs of the complete controller label and actuator nameplate when requesting a quotation. Availability, condition, included connectors, cables, firmware and delivery time should be confirmed before ordering.
