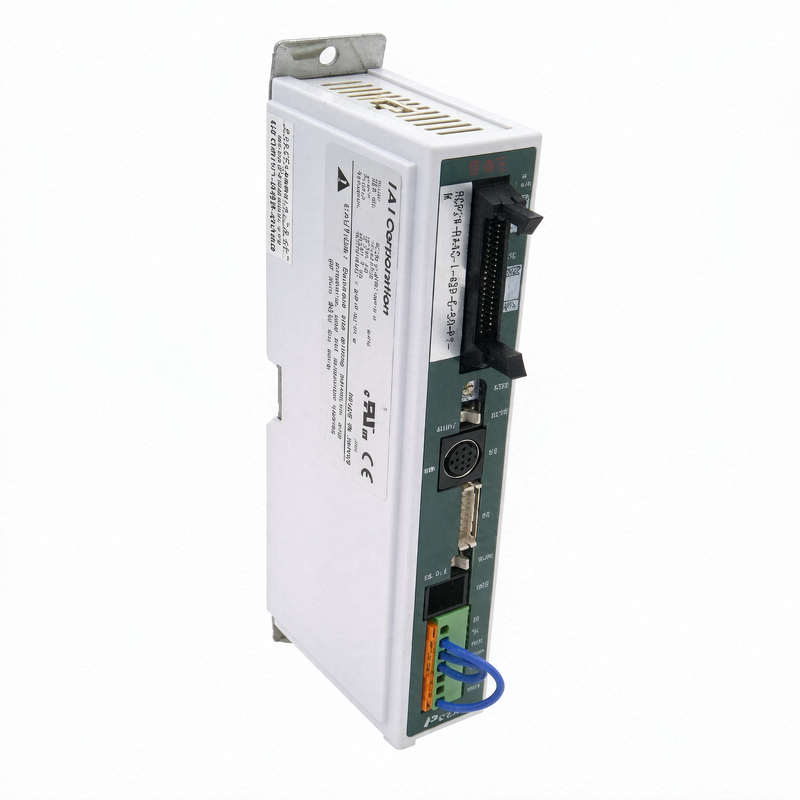

IAI PCON-C-42PI-CC-0-0 CC-Link Position Controller
| Place of Origin | Japan |
| Brand Name | IAI |
| Model Number | PCON-C-42PI-CC-0-0 |
Product Overview
IAI PCON-C-42PI-CC-0-0 is a single-axis position controller designed for use with a matching IAI RoboCylinder electric actuator. This controller combines actuator positioning functions with a CC-Link field network interface, allowing movement commands, position data, operating status and alarm information to be exchanged with an upper-level PLC or automation system.
Main Features
- Single-axis positioning control for a compatible IAI electric actuator
- 24 VDC controller power supply
- 42P actuator motor configuration
- Incremental encoder configuration
- CC-Link industrial field network interface
- Supports stored position data and network-based movement commands
- Suitable for legacy machinery maintenance and exact-model replacement
Technical Specifications
| Brand | IAI |
| Model | PCON-C-42PI-CC-0-0 |
| Series | PCON-C |
| Product Type | Single-Axis Position Controller |
| Controlled Axes | 1 Axis |
| Controller Power | 24 VDC |
| Actuator Motor Code | 42P |
| Encoder Configuration | Incremental |
| Network Code | CC |
| Communication Interface | CC-Link |
| Product Positioning | Legacy Equipment Maintenance and Replacement |
Compatible System and Applications
The PCON-C-42PI-CC-0-0 is suitable for automated assembly equipment, component transfer systems, packaging machinery, inspection stations, production fixtures and material-handling mechanisms. The CC-Link connection enables a compatible PLC to issue movement commands and receive position completion, operating status and alarm information through the industrial network.
Maintenance and Replacement Notes
PCON-C is a legacy controller family. The complete controller model and connected actuator configuration must be checked before replacement. Confirm the actuator nameplate, 42P motor configuration, encoder type, CC-Link station settings, communication speed, PLC data mapping, firmware version, connector arrangement and stored parameter data. A newer PCON-CB family controller must not be treated as a direct replacement without checking the actuator, network configuration and machine wiring.
Inquiry and Supply Notes
Please provide photographs of the complete controller label, connected actuator nameplate and CC-Link wiring when requesting a quotation. Product condition, included connectors, parameter backup, firmware, warranty and delivery time should be confirmed before ordering.
