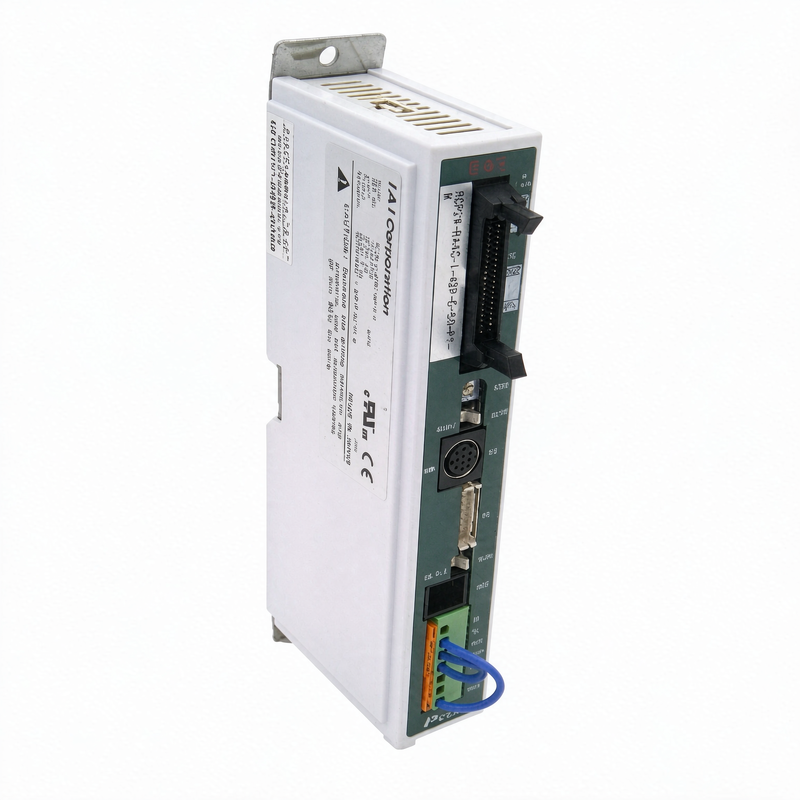

IAI PCON-CB-42PWAI-PN-2-0 PNP Position Controller
| Place of Origin | Japan |
| Brand Name | IAI |
| Model Number | PCON-CB-42PWAI-PN-2-0 |
Product Overview
IAI PCON-CB-42PWAI-PN-2-0 is a single-axis position controller for compatible IAI RoboCylinder electric actuators. This configuration uses a PN PNP source-type parallel I/O interface, making it suitable for control systems and PLC installations designed around PNP signal logic. The controller provides programmable actuator positioning for industrial machine automation and equipment replacement projects.
Main Features
- Single-axis control for a compatible IAI RoboCylinder actuator
- 24 VDC controller power supply
- 42P actuator motor configuration
- WAI encoder and feedback configuration
- PN PNP source-type parallel I/O
- Supports stored position data and PLC command operation
- Suitable for machine construction, modernization and maintenance
Technical Specifications
| Brand | IAI |
| Model | PCON-CB-42PWAI-PN-2-0 |
| Series | PCON-CB |
| Product Type | Single-Axis Position Controller |
| Controlled Axes | 1 Axis |
| Power Supply | 24 VDC |
| Actuator Motor Code | 42P |
| Encoder / Feedback Code | WAI |
| I/O Type | PN, PNP Source Type |
| I/O Cable Specification | Code 2 |
| Power Supply Code | 0 |
Compatible System and Applications
The PCON-CB-42PWAI-PN-2-0 is used in automated assembly systems, product handling equipment, packaging lines, inspection machines and production fixtures. It enables a PLC to select programmed actuator positions, issue movement commands and monitor completion, alarm and operating status signals through PNP I/O.
Maintenance and Replacement Notes
This PN version must not be confused with the NP version. PN indicates PNP source-type I/O, while NP indicates NPN sink-type I/O. Installing the wrong logic version can prevent correct communication with the PLC and may require changes to the machine wiring. Verify the complete controller model, actuator label, motor and feedback codes, PNP wiring, cable specification, firmware and stored parameter data before replacement.
Related Models
Related IAI family variant: PCON-CB-42PWAI-NP-2-0. The NP variant uses different I/O logic and is not automatically interchangeable with PCON-CB-42PWAI-PN-2-0. Confirm the complete model code, controller label, PLC input and output logic, wiring arrangement, firmware and actuator compatibility before selection.
Inquiry and Supply Notes
Please provide photographs of the existing controller label, actuator nameplate and terminal wiring when requesting a quotation. Confirm whether connectors, I/O cable, parameter backup and warranty are required.
