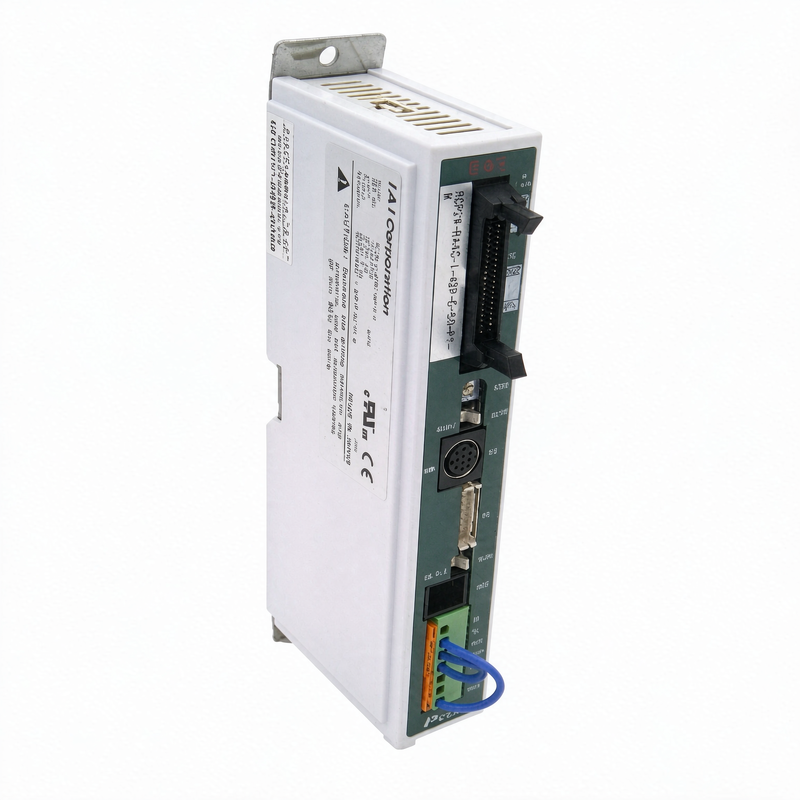

IAI PCON-C-42PI-NP-3-0 Single-Axis Position Controller

Product Overview

IAI PCON-C-42PI-NP-3-0 is a single-axis position controller used with a compatible IAI RoboCylinder actuator. It provides stored position control and discrete I/O communication for industrial automation equipment. This model is mainly required for servicing existing machines where the original PCON-C controller, NPN interface and cable configuration must be maintained.

Main Features

• Single-axis actuator positioning controller
• 24 VDC power supply
• 42P actuator motor configuration code
• Encoder and feedback configuration code I
• NP NPN sink-type parallel I/O
• Code 3 I/O cable configuration
• Suitable for legacy equipment repair and direct model matching

Technical Specifications

Compatible System and Applications

The controller is suitable for actuator positioning in production fixtures, transfer mechanisms, packaging machines, small assembly stations, testing equipment and automated handling systems. It receives movement commands from the upper-level controller and returns operating, completion and alarm signals through NPN parallel I/O.

Maintenance and Replacement Notes

PCON-C-42PI-NP-3-0 should be replaced by the same complete model whenever an exact drop-in replacement is required. PCON-C-42PI-NP-2-0 and other visually similar variants may use a different cable specification or option configuration. Verify the full suffix, actuator model, control logic, connector arrangement, firmware and parameter data before purchase. Back up the position table and control parameters from the original controller whenever possible.

Inquiry and Supply Notes

Supply status may include new old stock, refurbished or tested replacement units. The required condition, connectors, cables, parameter service and warranty should be stated clearly when requesting a quotation.
